EMI-EMC Capabilities

NU Laboratories provides full service testing as well as failure analysis and mitigation recommendations.

NU Labs is accredited by A2LA to ISO/IEC 17025:2005 General Requirements for the Competence of Testing and Calibration Laboratories for MIL-STD-461 and Power Quality Testing. Click logo for scope of accreditation.

         Testing Laboratory                Cert #3122.01

         Testing Laboratory
               Cert #3122.01

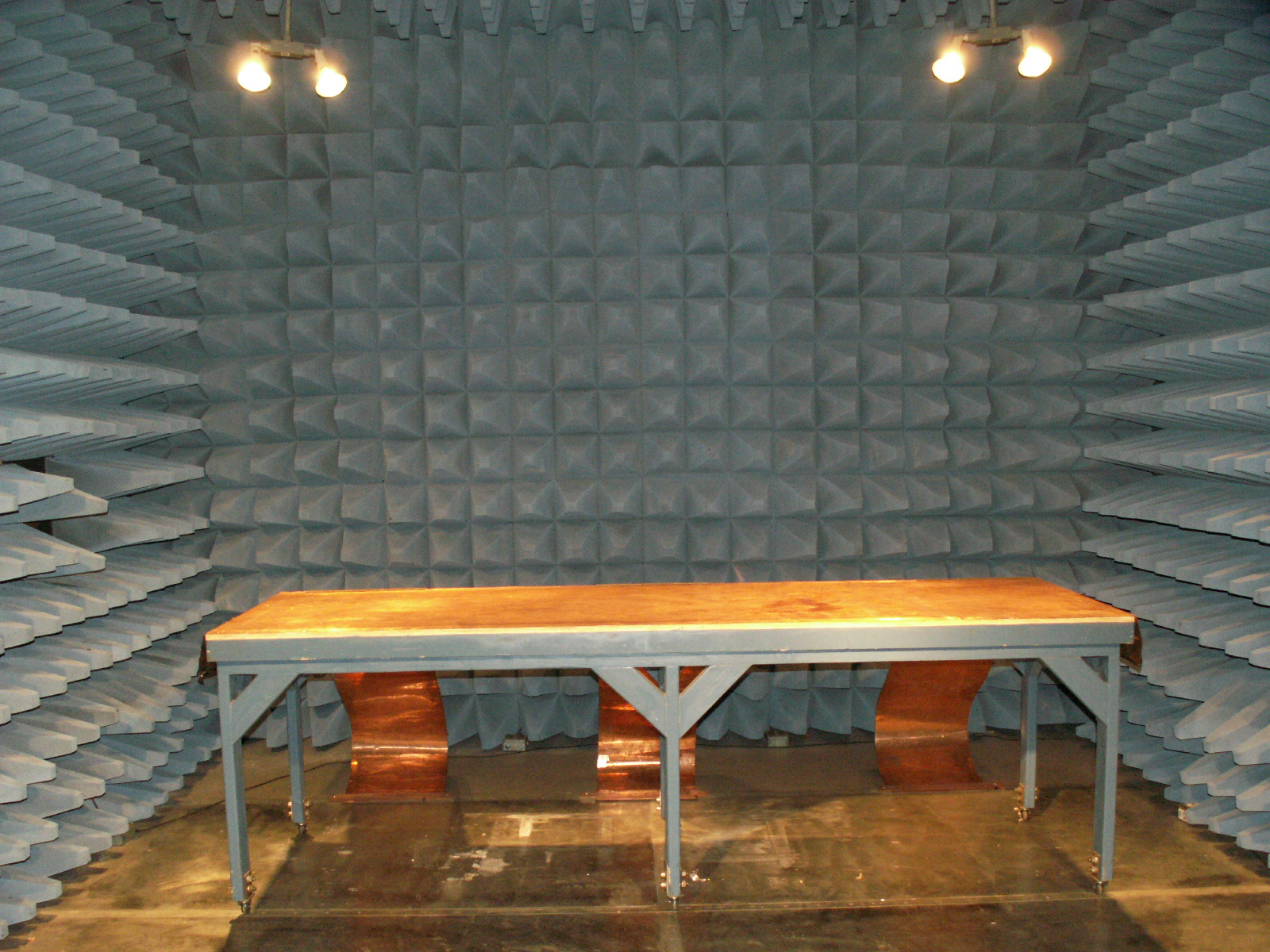

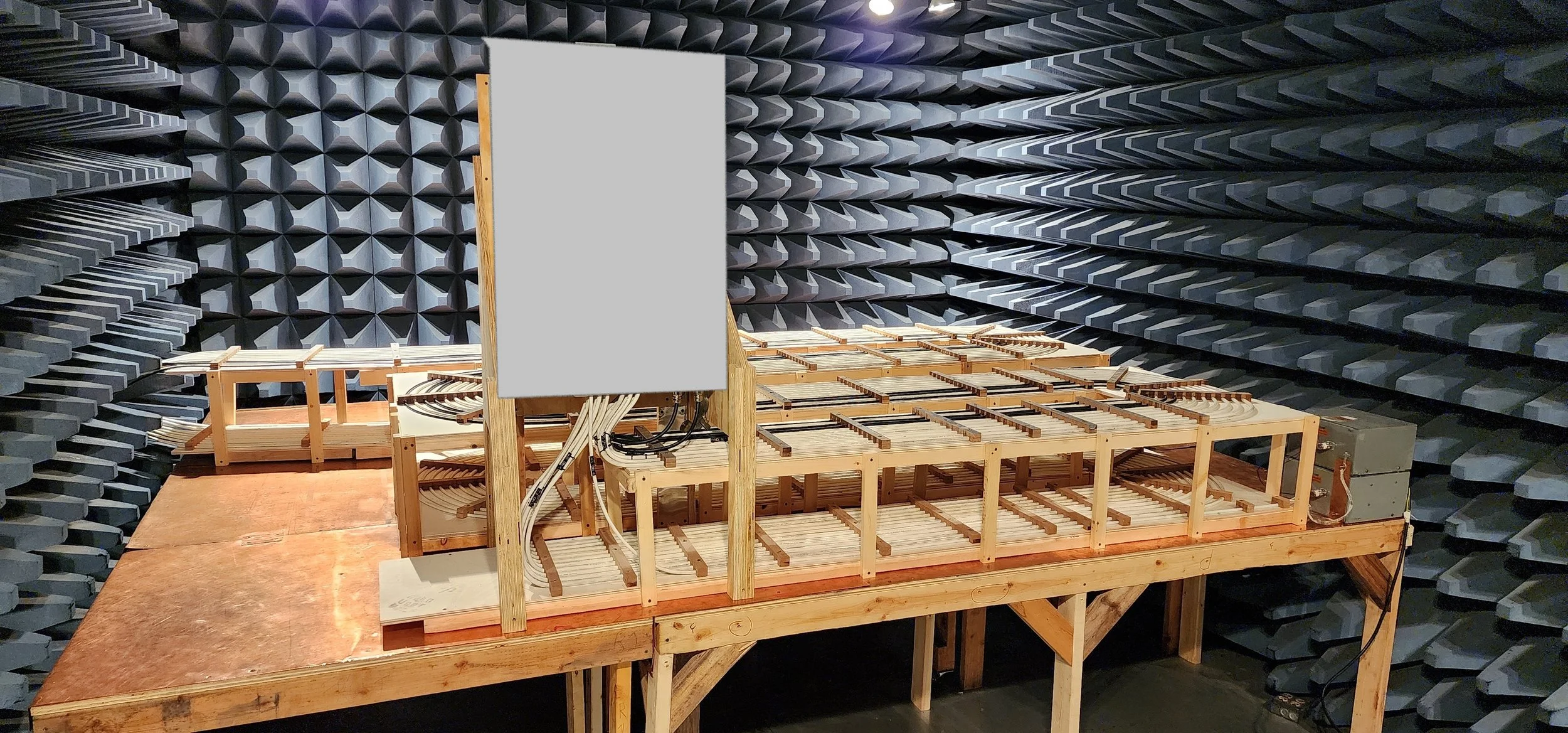

NU Labs is equipped with two shielded enclosures to provide electromagnetic interference testing required by current Military specifications. The first is a Panashield semi-anechoic electromagnetic shielded enclosure. It has an inside dimension of 23' x 16' x 12' with a usable test area of 10.7' x 9.8'.  The chamber uses 20" carbon impregnated cone material for RF absorption and conforms to MIL-STD461E/F.

The second chamber, a Universal Shielding Corp. shielded enclosure, measures 12' x 9' x 9' and has a entry door that is 35.5" wide by 84" high.  All power to both chambers is filtered.


EMC Capabilities

DC through 480V ac up to 100 AMPS
LISN up to 800V dc and 500V ac, up to 200 AMPS
Over 10 V/m 10kHz to 18GHz

Special Utilities

Double wide chamber door, 72" wide by 89" tall for large EUT's
Forklift with 5000 lb pallet load
In house welding
Custom built fixtures
Waveguide feed through for hydraulic and pneumatic lines
Cooling water, 100 psig, 3/4" hose fittings
Compressed air, 100 psi

NU Labs is A2LA accredited and can perform accredited testing to the following standards:
MIL-STD-461C, D, E , and F Electromagnetic Compatibility
MIL-STD-1399 Sec. 300A, and 300B, Interface Standard for Shipboard Systems
DOD-STD-1300 sec.070, DC Magnetic Field Environment

IEC 6100-4-2, Electro Static Discharge (ESD) up to 15 kV

In addition, NU Labs can also perform testing to:
MIL-STD-285, Attenuation Measurements for Shielded Enclosures
RCTA/DO-160 D/E/F/G

Chamber and test equipment are also available for use on an hourly/daily basis for research and development

Magnetic Loop
Inside diameter: 66 inches
Outside diameter: 77 inches
Inside width: 3 inches
